New Features:

  • 32-Bit Processing power for smoother motor control and improved response time.
  • Enhanced Data Logging includes:
    • Double the maximum sample frequency of older generations.
    • 8x increased logging time of older generations.
    • Data point for ESC electrical motor timing.
    • Data point for acceleration via onboard accelerometer.
    • Looping feature prevents interruptions in data log recording.
    • Ability to download specific sessions.
  • Hill Hold feature
  • Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline.
    • Additional tuning features include:
    • Improved braking adjustability
    • Separate brake and reverse curves
    • Highly adjustable internal BEC. (5.0V 8.0V adjustable in 0.1V increments)
  • Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
  • Mounting holes located in bottom of aluminum case for installation into vehicle. (Mounting template available under resources)

More Features:

  • Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo); 3s max with included 1406-4600kv motor
  • SmartSense™, Sensored Only and Brushed Motor Operation Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.0V 8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 25mm cooling fan
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Cobra 10 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

Logo alt
Categories
  • Planes
  • Cars
  • Gliders
  • Helicopters
  • Boats
  • Batteries & Chargers
  • Radios
  • Equipment
  • Gifts
  • Shop By Brand
Section

    Copyright Text - 2025 Modelflight

    Loading...

    Castle Creations Cobra 10 6S ESC with 8A BEC with 1406-4600kv Sensored Motor

    SKU: CSE010017401
    Loading...
    Loading...

    Perfect combo for 1/10th scale vehicles weighing less than 5lbs. Suggested applications are 1/10th scale touring cars, buggies and stadium trucks up to a 3s LiPo. It can also be used in a 1/10th scale 2WD Short Course Truck on 2s LiPo  and geared conservatively. Not for use in 4WD short course trucks.

    $503.99
    Loading...
    Loading...
    Loading...
    Loading...
    Loading...
    Loading...

    Castle Creations Cobra 10 6S ESC with 8A BEC with 1406-4600kv Sensored Motor

    SKU: CSE010017401
    $503.99
    Loading...
    Loading...

    Perfect combo for 1/10th scale vehicles weighing less than 5lbs. Suggested applications are 1/10th scale touring cars, buggies and stadium trucks up to a 3s LiPo. It can also be used in a 1/10th scale 2WD Short Course Truck on 2s LiPo  and geared conservatively. Not for use in 4WD short course trucks.

    Out of stock
    Enter your email address to be notified when this item is back in stock.

    Similar Products

    Loading...
    Castle Creations Wire, 6AWG, Red, 2ft, 010-0104-00, Clearance
    Castle Creations Wire, 6AWG, Red, 2ft, 010-0104-00, Clearance$60.99 $24.99
    View product
    Spektrum Firma 6000kv Brushless Motor/ESC 2-in-1 Combo with EC2 Connector
    Spektrum Firma 6000kv Brushless Motor/ESC 2-in-1 Combo with EC2 Connector$179.99
    View product
    Castle Creations Wire, 36 Inch, 8AWG, White, 010-0029-00
    Castle Creations Wire, 36 Inch, 8AWG, White, 010-0029-00$31.99
    View product
    Castle Creations Wire, 16AWG, Red, 5ft, 010-0037-00
    Castle Creations Wire, 16AWG, Red, 5ft, 010-0037-00$22.99
    View product
    Castle Creations Wire, 13AWG, Red, 3ft, 010-0034-00
    Castle Creations Wire, 13AWG, Red, 3ft, 010-0034-00$22.99
    View product
    Castle Creations Wire, 36 Inch, 10AWG, Red, 010-0031-00
    Castle Creations Wire, 36 Inch, 10AWG, Red, 010-0031-00$31.99
    View product
    Castle Creations Wire, 36 Inch, 8AWG, Black, 010-0027-00
    Castle Creations Wire, 36 Inch, 8AWG, Black, 010-0027-00$31.99
    View product
    Castle Creations Phoenix Edge Lite 80A HV Brushless ESC, Clearance
    Castle Creations Phoenix Edge Lite 80A HV Brushless ESC, Clearance$361.99 $289.59
    View product

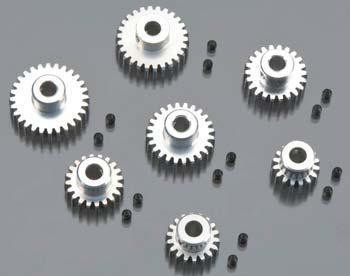

    Castle Creations 32P Pinion Set, 010-0065-15
