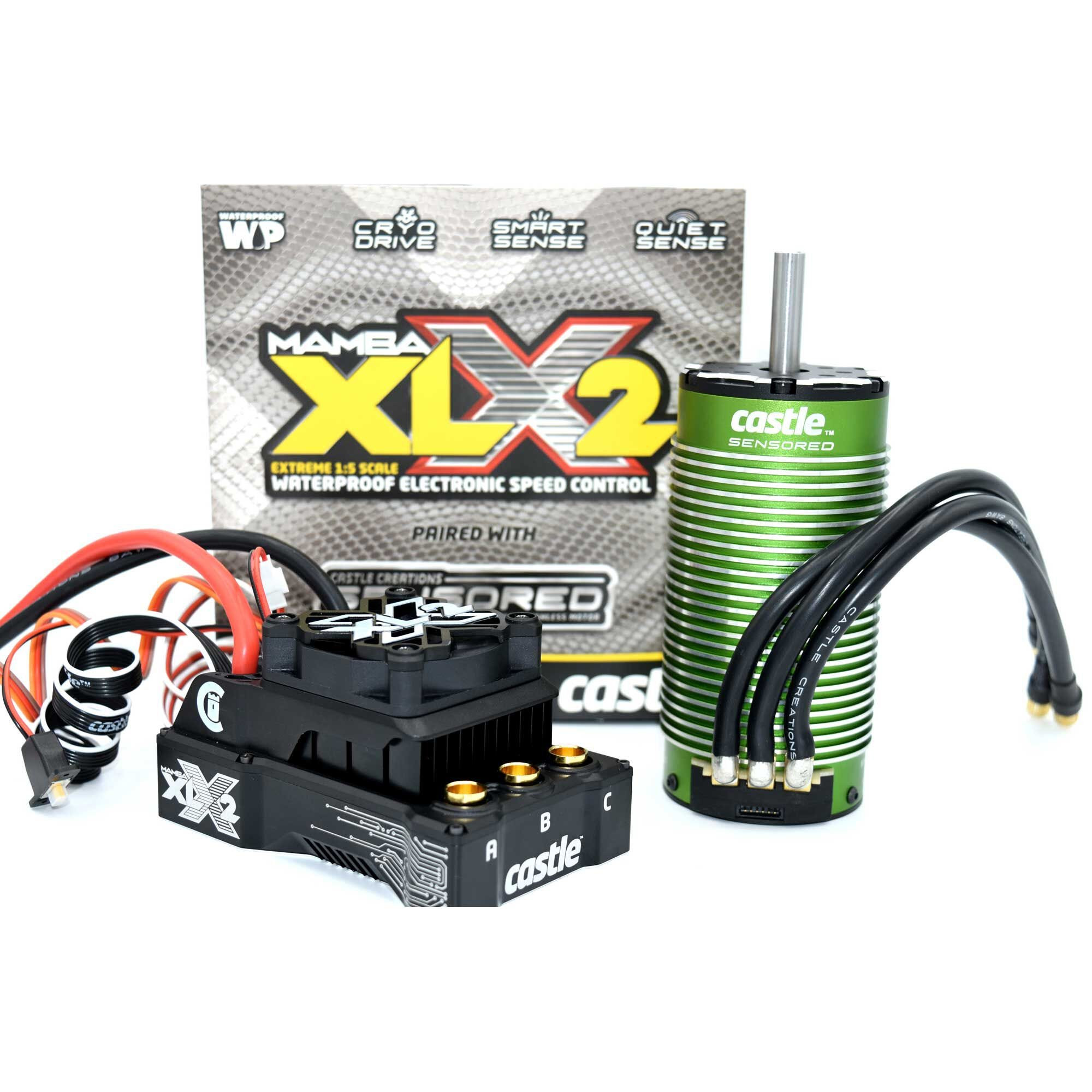

ESC Features

• Input Voltage Range 3S-8S LiPo (33.6v max)
• Sensorless, Sensored, SmartSense™ and Brushed Running Modes
• Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
• CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
• Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
• Oversized factory equipped thermally controlled 50MM cooling fan
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
• Mounting holes located in bottom of aluminum case for affixing to your vehicle
• Waterproof design for all weather conditions
• Data logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Easily tune and update ESC with USB and Bluetooth™ programming options
• Castle Link USB programming kit (coupon included with purchase)
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store)

Motor Features

• 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
• Proprietary stator winding produces low internal resistance for a cooler-running motor
• Dual sensor ports to ensure optimal installation in your large-scale vehicle
• Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
• High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
